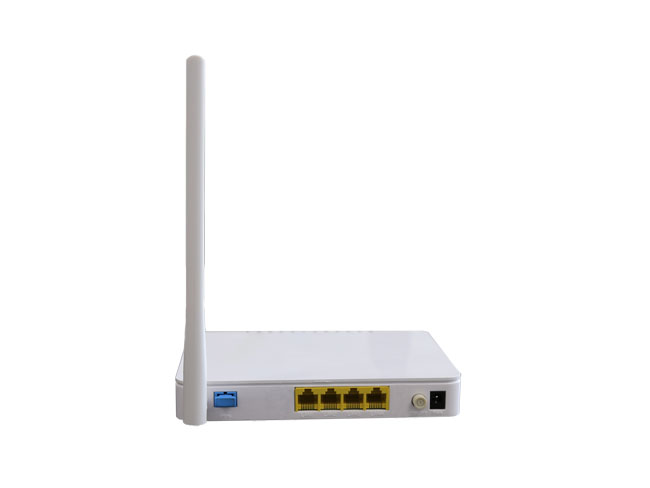

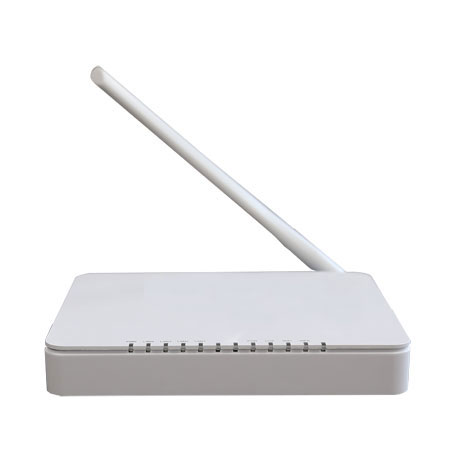

Product Name：Wireless GPON-ONT-4 RJ45 + 1PON gateway
Specification Model：ZP-GP1504GW
☆ full duplex / half duplex RJ45 electrical port, support cross-direct adaptation
☆ transmission distance of 100 meters
☆ power interface 12V DC power supply interface FD504GH data type GPON ONT products
☆ management support for G.984.4 based on the OMCI management channel and WEB management
☆ management function status monitoring, configuration management, alarm management, log management
ZP-GP1504GW product is our company based on GPON technology broadband access market launched passive optical network client products. The product can meet the FTTH / FTTO fiber to the user needs, providing users based on GPON high-bandwidth access, data, video integrated services.
GPON technology is based on ITU-T G.984 standard latest generation of broadband passive optical network integrated access standard, with high bandwidth, high efficiency, large coverage, rich user interface and many other advantages, is the operator to achieve access network
Broadband, integrated transformation of the ideal technology. Provides four GE adaptive interfaces and one 802.11 n / b / g Wi-Fi interface. Equipment has been achieved with the industry mainstream communications manufacturers (Huawei / ZTE / flames / Alcatel-Lucent) GPON central office equipment (OLT) interoperability,
Composed of Gigabit systems, to meet the triple play video, voice and data services FTTH / FTTO access needs. At the same time its WIFI function can provide users with different types of indoor mobile terminals through Wi-Fi access needs. It is highly reliable and provide quality of service (OOS) to ensure that easy to manage, can be flexible to upgrade the expansion and networking
point. The functions and performance of the equipment are in line with ITU-T, IEEE related recommendations, relevant international standards and industry
Features
Fully compatible with ITU-T G.984, using GPON uplink
Supports four GE Adaptive Ethernet interfaces
Support OMCI management
Ethernet auto-negotiation and MDI / MDIX auto-detection function
Supports configuration of Ethernet interface rates, operating modes, and Pause flow control
Supports line loopback detection on the user side Ethernet interface
Supports packet filtering and anti-illegal packet attack protection, suppresses unknown unicast, broadcast and multicast packets
Supports Ethernet line performance statistics
Support VLAN tag handling, traffic classification and packet filtering, STP / RSTP protocol and other functions
Support for IGMP Snooping
Support AES-128 decryption, support key generation and switching
Supports dual management modes based on DBA technology and priority to ensure minimum bandwidth requirements for users
Technical Parameters:
☆ 1 meet the FSAN G.984.2 standard GPON interface
☆ Down speed: 2.488Gbps; Uplink rate: 1.244Gbps
☆ SC / PC single-mode single fiber
☆ support 28dB link (FSAN Class B +) 30 km range access, 1: 128 spectral
☆ user port (LAN port) 4 10/100 / 1000M adaptive Ethernet port
☆ full duplex / half duplex RJ45 electrical port, support cross-direct adaptation
☆ transmission distance of 100 meters
☆ power interface 12V DC power supply interface FD504GH data type GPON ONT products
☆ management support for G.984.4 based on the OMCI management channel and WEB management
☆ management function status monitoring, configuration management, alarm management, log management
☆ WIFI performance parameters
Conforms to IEEE802.11n protocol standard, 2.4 GHz-
With the traditional IEEE802.11b / g fully compatible with the performance has improved
Using dual-stream spatial multiplexing technology, the physical layer protocol data rate up to 300Mbps
Supports multiple SSIDs (up to 4 SSIDs)
Support for automatic selection of channels
Support SSID hidden
Support 64/128 bit WEP, 802.1x, WPA and WPA2 wireless security
☆ encryption mode 802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)
Channel 13 channels can be configured to the United States, Canada, Europe, Japan, China and other regional norms.
☆ Modulation method DSSS, CCK and OFDM
☆ coding program BPSK, QPSK, 16QAM and 64QAM
☆ RF reception sensitivity
802.11b:
-82dBm @ 1 Mbps; -80dBm @ 2 Mbps;
-78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps
802.11g:
-82dBm @ 6 Mbps; -81dBm @ 9 Mbps;
-79dBm @ 12 Mbps; -77dBm @ 18 Mbps;
-74dBm @ 24 Mbps; -70dBm @ 36 Mbps;
-66dBm @ 48 Mbps; -65dBm @ 54 Mbps
☆ working mode routing and bridge mode
rate
IEEE 802.11b: 11Mbps
IEEE 802.11g: 54 Mbps
IEEE 802.11n: 135Mbps
☆ Frequency range 2.412 ~ 2.472 GHz
☆ RF maximum output power
802.11b:
16.5 ± 1dBm
802.11g:
13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps;
15 ± 1dBm @ 6 ~ 36 Mbps
802.11n:
13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps;
15 ± 1dBm @ 6 ~ 36 Mbps
☆ power supply, power consumption external 12V / 0.5A DC power adapter power supply
☆ Power consumption: <5W
☆ Working temperature: 0 ~ 50 ℃
☆ Storage temperature: -40 ~ 85 ℃
☆ Working humidity: 10% ~ 90% non-condensing
☆ Storage humidity: 10% to 90% non-condensing
☆ Size: 170mm (L) * 130mm (W) * 30mm (H)
