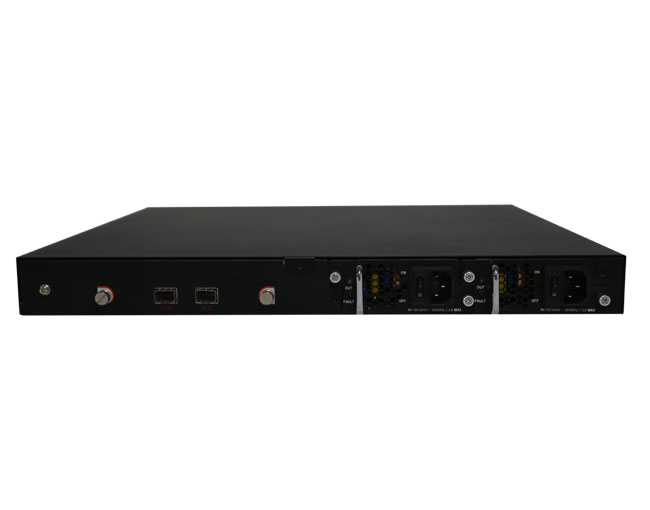

The ZP-GP1108 product is fully compliant with ITU G.984.x and FSAN standards. The equipment is 1U rack-mounted equipment, providing 8 gigabit uplink ports, optional 10 Gigabit uplink port, support 8 GPON ports, 1: 128 split ratio, 1024 GPON terminal access, can provide 2.5Gbps downlink and 1.25Gbps upstream bandwidth. Products with small and convenient, flexible, easy to deploy, high-performance features to meet the compact room environment on the equipment performance, volume requirements. To meet the access network, enterprise network to enhance network functionality, improve reliability and reduce power consumption needs. Products for radio and television "triple play", the resident network fiber access, video surveillance network, enterprise LAN, Internet of things and other network applications, with a high cost. Features Meet the ITU-T G.984 / G.988 standards, to meet China's communications industry GPON-related standards Support OMCI ONT / ONU remote management, compatible with ITU-984.4 OMCI protocol 1U high 8PON box (Pizza-Box) compact design OLT products Provides 8 GPON ports, 8 uplink GE optical ports + 8 uplink GE electrical ports, 10 Gigabit card expansion slot provides two 10 Gigabit SFP + uplink port; single PON port supports 128 ONT access, with 1024 terminals; Dual power supply redundant power supply, support 220VAC and -48VDC mixed interpolation. Improve the two-tier exchange function OLT has a strong two-tier wire-speed switching capabilities, a comprehensive Layer 2 protocol support. With the exchange, isolation and One By One work mode; support for port aggregation, VLAN, port speed limit, queue technology, flow control technology and ACL and other rich two-tier function for the development of multi-service integration has played a technical guarantee. QOS protection GPON products have a perfect DBA, with excellent QoS service capabilities. DBA through the four types of bandwidth and five types of T-CONT, GPON system for a variety of different QoS, to meet the different business flow on the delay, jitter, packet loss rate of different QoS requirements Easy to use management system Support the CLI, SNMP management scheme, meet the OMCI specification, through the OMCI channel protocol to achieve business management, including ONT function parameter set, T-CONT business type and quantity, QoS parameters, request configuration information and performance statistics, automatic notification system operating events , To achieve OLT ONT configuration, fault diagnosis, performance and security management.
Technical Parameters: ☆ slot 1 million Gigabit card slot ☆ 2 power supply module slots ☆ on the power of 8 10/100 / 1000M adaptive electrical port; RJ45 ☆ SFP interface 8 SFP interface (1000BASE-TX interface) ☆ 10 Gigabit 2 SFP (optional, 10 Gigabit card) ☆ PON interface number 8 Physical interface SFP slot ☆ Interface type ITU-TG.984.2Class B + The maximum splitting ratio is 1: 128 ☆ management port 1 100BASE-Tx out-of-band network port ☆ a CONSOLE local management mouth ☆ PON optical port specification (Class B +) transmission distance 20KM ☆ port rate down 2.5Gbps, uplink 1.25Gbps ☆ wavelength to send 1490nm, receive 1310nm ☆ Interface type SC ☆ interface fiber specifications 9 / 125μm single-mode fiber ☆ emission power + 1.5 ~ +5 dBm ☆ receiving sensitivity -28dBm ☆ Saturated optical power -8dBm ☆ network management support CLI, SNMP, TELNET ☆ business ability to support the state monitoring, configuration management, equipment, log, equipment upgrades, equipment management, user management; ☆ Layer 2 switching configuration management: such as port management, VLAN, RSTP, IGMP, ACL, QOS and so on ☆ PON function configuration management: such as ONT authentication, DBA templates, business templates, line templates, etc. ☆ rack type 19-inch cassette ☆ power supply 220VAC AC: 90V ~ 240V, 47 / 63Hz ☆ -48DC DC: -36V ~ -72V ☆ maximum power 65W ☆ working temperature 0 ~ 50 ℃ ☆ Storage temperature -40 ~ 85 ℃ ☆ relative humidity 5 ~ 90% (non-condensing)
