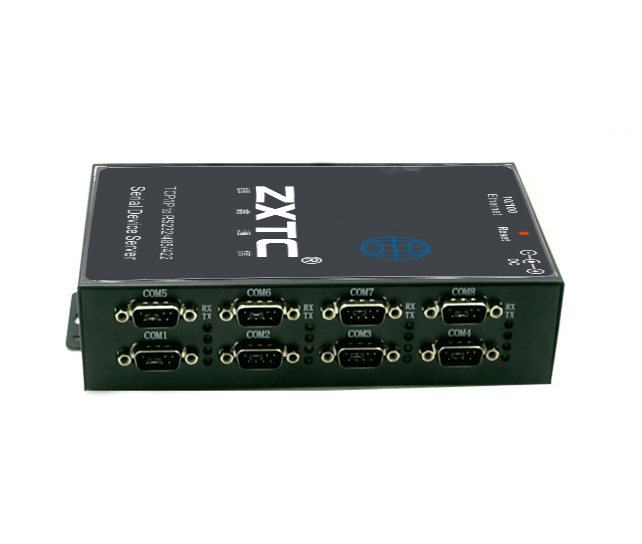

Product Name:8-port RS232 to Ethernet serial port server

Specification Model:ZP-8808A

☆ protocol TCP, HTTP, UDP, ICMP, ARP, IP, DNS, DHCP
☆ virtual serial port platform Windows 95/98 / ME / NT / 2000 / XP / WIN7
☆ configuration way Web browser, serial port AT command
☆ voltage input DC9 ~ 24V, 45mA
☆ support 1000bps ~ 460800bps baud rate.
☆ Shell material anti-electromagnetic material SECC steel plate
☆ Size L × W × H = 9.2cm × 19.7cm × 2.5cm
☆ Operating temperature, humidity -40 ~ 85 ℃, 5 ~ 95% RH
☆ Storage temperature, humidity -30 ~ 85 ℃, 5 ~ 95% RH
☆ support 9-bit data transmission function: 9 can be no, odd parity, even parity, 1,0, five ways to facilitate the communication in the 485 data frame and address frame.
☆ can be automatically found on the network equipment network server.
☆ support virtual serial port.
☆ support data write protection, to prevent random tampering.
